Reference Series Sub-woofer in Gloss Piano Black
G1 MkII
A Classic Reborn
UPGRADED COMPONENTS, RETAINED BEAUTY - BETTER IN EVERY WAY THAN THE ORIGINAL G1
Retained is the classic curvilinear cabinet, with its shape carefully engineered to cancel standing waves as they travel rearward through the cabinet.
The laminated hardwood bracing reminiscent of musical instruments still finds a home—though re-configured for even greater rigidity.
The amplifier is the powerful, yet highly controlled and ultra-reliable 600w Class A/B with new limiters that allow almost 40% more power being delivered without compression.
The driver—the heart and soul of any REL– has been dramatically upgraded with greater fore-and-aft stroke, a more supple suspension and the ability to handle greater dynamics.
This new version is now capable of 112 dB output. expands the performance horizons of the original in every way, whilst retaining its core strengths of dignified beauty coupled to even more savage output.
FINISH: Piano Black Lacquer, 12 coats
Conclusion:
In my personal opinion, when it comes to Subwoofer performance, quality, and technology, REL Audio bass products are untouched in the audio industry.
Moreno Mitchell - Stereo Times 2019
> Send to a Friend
> Contact us about this product
> Purchase this product
SPECIFICATIONS -
TYPE: Closed box, front-firing driver
ACTIVE DRIVER SIZE & MATERIAL: 12 in., 300mm long-throw, carbon fibre cone with inverted carbon fibre dust cap
PASSIVE RADIATOR SIZE & MATERIAL: N/A
LOW FREQUENCY EXTENTION: -6dB at 15 Hz

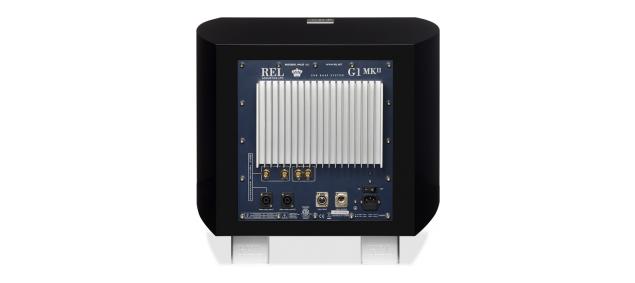

INPUT CONNECTORS: High level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR
OUTPUT CONNECTORS: High Level, Low Level RCA, Balanced XLR, Daisy Chain Outputs
POWER OUTPUT: 600 watts (RMS) Ultra High-Current Power Supply
AMPLIFIER TYPE: Class A/B
WIRELESS CAPABILITY: N/A
Protection System
FULLY ELECTRONIC SET SAFE: Yes
D.C. FAULT: Yes
OUTPUT SHORT: Yes
MAINS INPUT VOLTAGE: 220-240 volts, 110-120 volts for certain markets
FUSES: 5 Amp semi delay 230 volts operation, 10 Amp semi delay 115 volts operation
Dimensions: W X H X D 22.5 x 18.2 x 26.8 in. (571.5 x 462 x 680.3 mm)
NET WEIGHT: 108 lbs (49 kg)
Supplied Accessories: MAINS LEAD Yes
NEUTRIK SPEAKON: Yes (10 Meters Nominal)
INTERCONNECT
USERS MANUAL
