Cambridge Audio -
Moving Coil, Moving Magnet Phono Pre-Amp with Headphone Amp in Grey.
Duo
What HiFi Magazine 5 Star Product ... April 2018
VINYL AS IT’S SUPPOSED TO SOUND
Whether you’re dusting off your record collection or embracing analogue through the vinyl revival, there’s a unique experience to be had from the moment you drop the needle on your favourite album.
To preserve the unique warmth of the vinyl sound, the Duo Phono Pre-amplifier has been carefully designed with a state-of-the-art switch mode power supply and a new surface mounted circuit board layout to reduce unwanted noise.
WHY CHOOSE A DEDICATED PHONO PREAMPLIFIER?
Due to the low-level signals created by a turntable, not all hi-fi amplifiers will let you connect directly to a record player. The Phono Pre-amplifier boosts this signal to something a power amplifier can work with.
The challenge at this stage though is that noise can easily be added.
This is why we’ve designed the Duo around exceptional components that deliver the warm and detailed sound that’s synonymous with vinyl, all without distorting the signal from your moving magnet cartridge turntable.

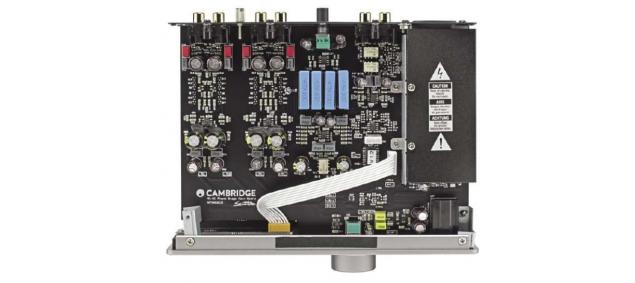

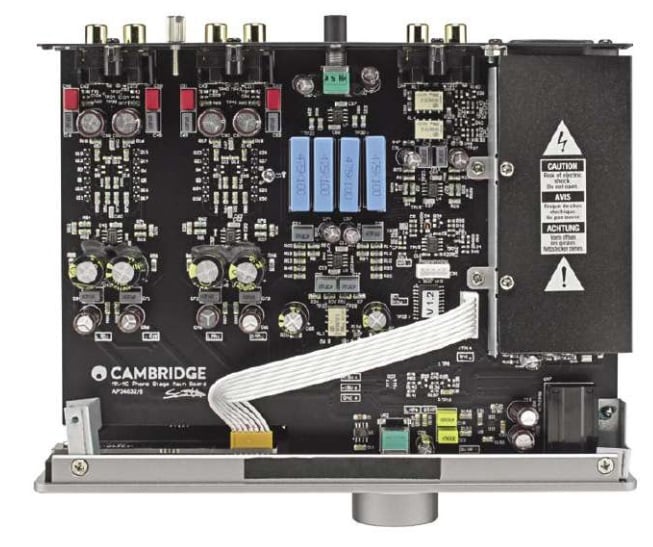

The switch mode power supply improves performance by switching outside of audible frequency to drastically reduce hum and new circuit board layout uses surface-mount components to reduce noise.
MAJOR HI-FI Magazine.
UNITED STATES, SEPTEMBER 2018
The Duo seems to exude an air of accomplishment. It’s a solid, lightweight piece of tech that just looks plain good... A rich and rewarding listening experience I just can’t tear myself away from... Few other options out there can match this kind of listening experience, which to put it mildly, is pretty amazing.
> Send to a Friend
> Contact us about this product
> Purchase this product
MAX POWER CONSUMPTION: 10W CARTRIDGE SUPPORT: Moving Magnet | Moving Coil GAIN @ 1KHZ: MM: 39dB | MC: 60dB NOMINAL OUTPUT: 300mV SENSITIVITY FOR NOMINAL OUTPUT: MM: 3.35mV | MC: 305uV EQUIVALENT INPUT NOISE (A-WEIGHTED): MM: ~0.09uV | MC: ~0.08uV RIAA CURVE ACCURACY: +/- 0.3dB 30Hz-50Hz SIGNAL TO NOISE RATIO GROUNDED INPUTS REF. 1V OUTPUT (20HZ-20KHZ BW): MM: >90dB | MC: >70dB THD+N 1KHZ (20-20KHZ BW): MM: <0.0025% | MC: <0.20% INPUT IMPEDANCE: MM: 47k Ohms | MC: 100 Ohms INPUT CAPACITANCE: 100pF OVERLOAD MARGIN: >30dB CROSSTALK @ 10KHZ: MM: >85dB | MC: 75dB DIMENSIONS (H X W X D): 48 x 215 x 159 mm (1.9 x 8.5 x 6.2") WEIGHT: 0.95kg (2.1lbs)
