The Best Universal Disc-Player in the World, available in Black and Silver.

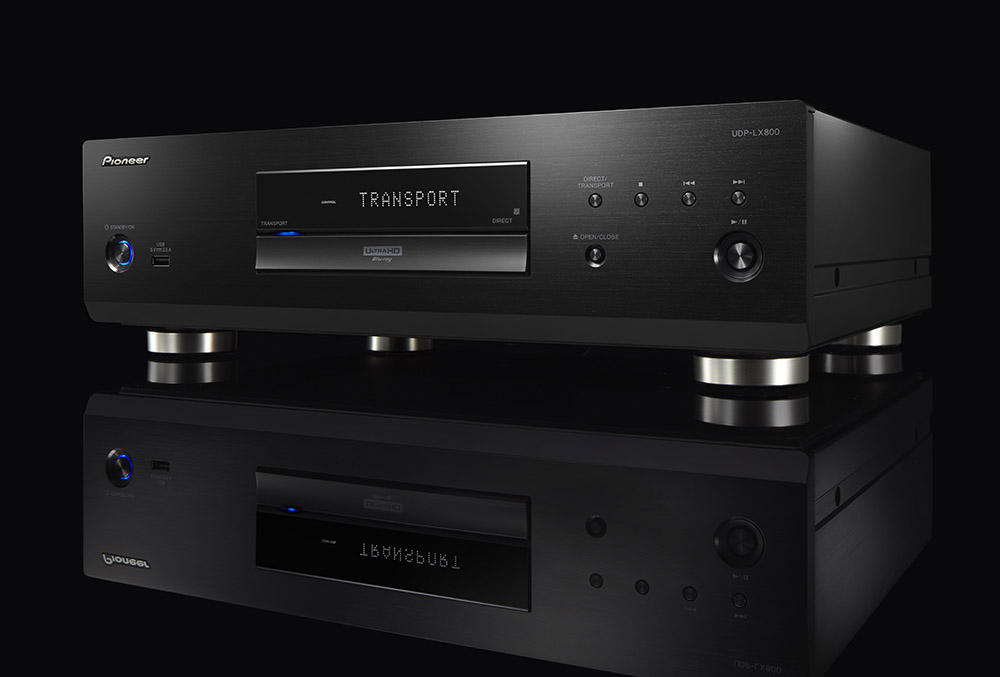

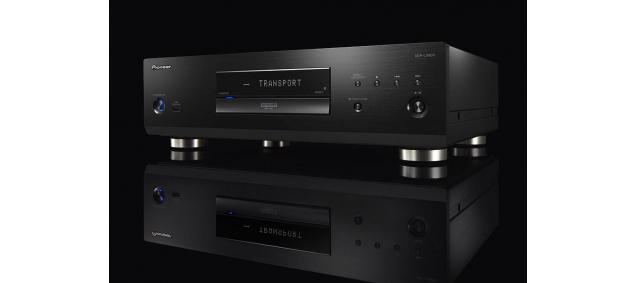

UDP-LX800

When we say "the best in the world", thats not us talking, that's the best HiFi reviewers on the planet raving about this Player.

It's impossible to Over-Hype this machine.

OUR VERDICT

This is the Tesseract of disc spinners

By

Pioneer lays claim to the high-ground of the home theatre market with this movie machine. Hands down, it’s the finest 4K Blu-ray player on the planet , if you want the best home cinema disc player available, the UDP-LX800 is it.

There’s simply nothing to rival it.

The Blu-ray is incredible, the sound quality is exceptional, the build quality is everything HiFi could be. If you were thinking about ditching your CD Player to go Streaming, but still wanted something to play your collection on, both DVD and CD.

This is it!

Features

This flagship universal disc player is the embodiment of Pioneer’s considerable expertise amassed over the years through the development of successive optical disc players. Elaborately engineered for the ideal disc playback, the UDP-LX800 features extremely rigid construction to achieve high S/N ratio for quality audio and video performance. With support for the latest Ultra HD Blu-ray™ format, you can enjoy the beautiful spectacle with four times the resolution of 1080p Full HD. Two ESS SABRE PRO Series DACs are used in parallel to provide audiophile sound. Other features include SDR/HDR Preset Mode, Direct/Transport Function, and XLR balanced output terminal.

Specification

Construction

Three-Block Internal Layout (Power Supply, Drive/Digital Processing, Analogue Audio)

Ultra-Rigid Construction with Ventless Steel Plate Top Panel and Aluminium Side Panels

3 mm Steel Plate Rigid Under Base for Rigidity and Low Centre of Gravity

6-Layered IVH Main Circuit Board for High S/N Ratio

Rigid & Quiet BD Drive

Honeycomb Mechanism Drive Cover with Anti-Vibration Paint

Acoustic Damper Tray with Anti-Vibration Paint

Float-Mounting Structure

Anti-Standing Wave Insulators

Video Features

Ultra HD Blu-ray Playback

4 Presets According to Display Type, with Automatic Detection/Switching for SDR/HDR Signals

Video Adjust

HDR10

Dolby Vision (Low Latency Compatible)

36-bit Deep Colour/”x.v.Colour”

Audio Features

8ch Parallel Drive with SABRE ES9026PRO DAC x 2

Large-Capacity Power Supply Transformer

Custom Electrolytic Capacitors

Direct Function for Pure Analogue Audio Output

Transport Function for Pure Digital Audio/Video Output

Dual HDMI Output

PQLS Jitter-less Sound Transmission via HDMI (with compatible AV Receiver)

Convenience

Disc/HDMI/HDR Information On-Screen Display

BD-Live/BONUSVIEW

Continued Viewing Playback

30 sec Skip Forward/10 sec Skip Back

Auto Power Off

Firmware Update (USB/Network)

Self-Illuminating Remote Control

Playback Media

BD-ROM (UHDBD/3D BD/BD)/BD-R (DL)/BD-R LTH/BD-RE (DL)

DVD-ROM (DVD-Video/DVD-Audio)/DVD-R (DL)/DVD-RW/DVD+R (DL)/DVD+RW

Audio CD (CD-DA/SACD)/CD-ROM/CD-R/CD-RW

USB Memory/HDD

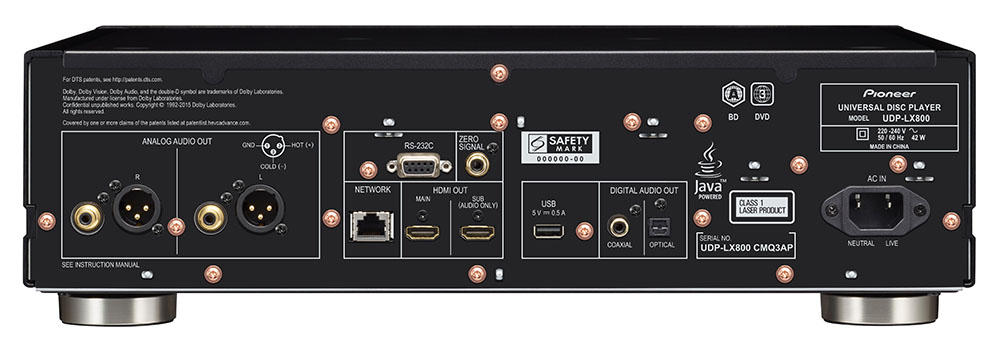

Terminals

HDMI 2 Out (1 Main for Audio/Video, 1 Sub for Audio)

Digital Coaxial Out

Digital Optical Out

USB 2 In (1 Front, 1 Rear)

Ethernet

RS-232C

Analogue Audio Out (RCA Unbalanced, XLR Balanced)

Zero Signal Terminal (for Audio/Video Quality Tuning)

Specifications

Power Requirements: AC 220-240 V, 50/60 Hz

Power Consumption: 42 W

Power Consumption During Standby: 0.45 W (Full)/1.4 W (Network Standby On)

Dimensions (W X H x D): 435 x 131 x 339 mm

Weight: 13.8 kg

  •
  •
  •
  •
  •
  •
  •
[Read More]
Our Price $3,999



Three-Part Chassis Structure

The blocks for power supply, drive/digital processing, and analogue audio are separated into three to eliminate electrical and magnetic interference between the blocks. The rigid beams placed between the blocks further reinforce the structure, while the internal layout is optimally designed to minimize vibration and signal loss.



Ultra-Rigid Construction with Ventless Steel Plate Top Panel and Aluminium Side Panels

Even the holes for heat radiation are excluded to realise a flat form with optimal electric circuit design, to minimise the mechanical motion sound from the BD drive. The result is significantly low noise and even more rigid and stable chassis structure.

Rigid Under Base for Rigidity and Low Centre of Gravity

The 1.6 mm-thick chassis base is reinforced with a 3 mm-thick steel plate Rigid Under Base. This Double-Layered Chassis structure provides a low centre-of-gravity and overall rigidity that prevents the transfer of external vibration to the inner chassis, and offers a superior reading of the disc.

  •



Large-Capacity Power Transformer and Power Supply Circuitry

The dedicated large-capacity power transformer for the analogue audio circuitry and the custom capacitor constitute the superior power circuitry capable of instantaneous power supply. The unnecessary electromagnetic wave generated by the transformer is confined within the copperplated shield case with anti-vibration paint. The f-hole-shaped embossing also helps to suppress standing-waves within the case, thereby achieving sound quality with both dynamic and silent features. The power supply circuitry has a case with an F clef emboss for suppressing standing waves, and black anti-vibration paint, allowing stable and high-quality power supply to the drive and digital blocks.

Universal Disc Player with Ultra HD Blu-ray Playback

As a universal disc player, the UDP-LX800 can play various optical discs including the latest disc format Ultra HD Blu-ray which has four times the resolution of 1080p Full HD, as well as Hi-Res Audio and other music files, and video files.



6-Layered Main Circuit Board for High S/N Ratio

A 6-layered IVH is used for the main circuit board to thoroughly eliminate digital noise. This optimises the digital signal wiring and minimises GND impedance, and dramatically improves S/N ratio in audio/video signal processing. The maximum 18 Gbps transmission through the latest HDMI standard becomes even more precise.



Audio Circuitry for Quality Sound

The technologies for Pioneer’s SACD player PD-70AE is incorporated to further improve the analogue audio block. The paths for L and R signals are made identical including the pattern and parts layout. The L/R signal balance is strictly maintained, resulting in evermore precise and superior separation during playback. The bus bar between L and R signals also help to stabilize the ground.



SDR/HDR Preset Mode for Optimal Performance for the Display

In addition to the video parameter “Reference” for reproducing the master quality, you can select “LCD TV”, “OLED TV”, or “Projector” for the video quality best suited to your display. Additionally, there are SDR/HDR presets for each video parameter, that automatically switches between SDR preset and HDR preset according to the output signal.



Disc Information On-Screen Display

You can display the disc information on your screen by pressing and holding the remote control’s DISPLAY button. In addition to the playing disc’s details, you can easily check mastering information such as MaxFALL (Maximum Frame Average Light Level) and MaxCLL (Maximum Content Light Level) available on some HDR content, as well as HDMI output information.



Transport Function for Pure Digital Audio/Video Output

The function completely turns off the analogue audio circuitry from power supply to output, by cutting the power supply to the transformer during HDMI connection. The HDMI’s S/N ratio further improves and realises highquality audio and video playback.​
